HEIGHT ADJUSTABLE SUPPORT - CLAMP MOUNT

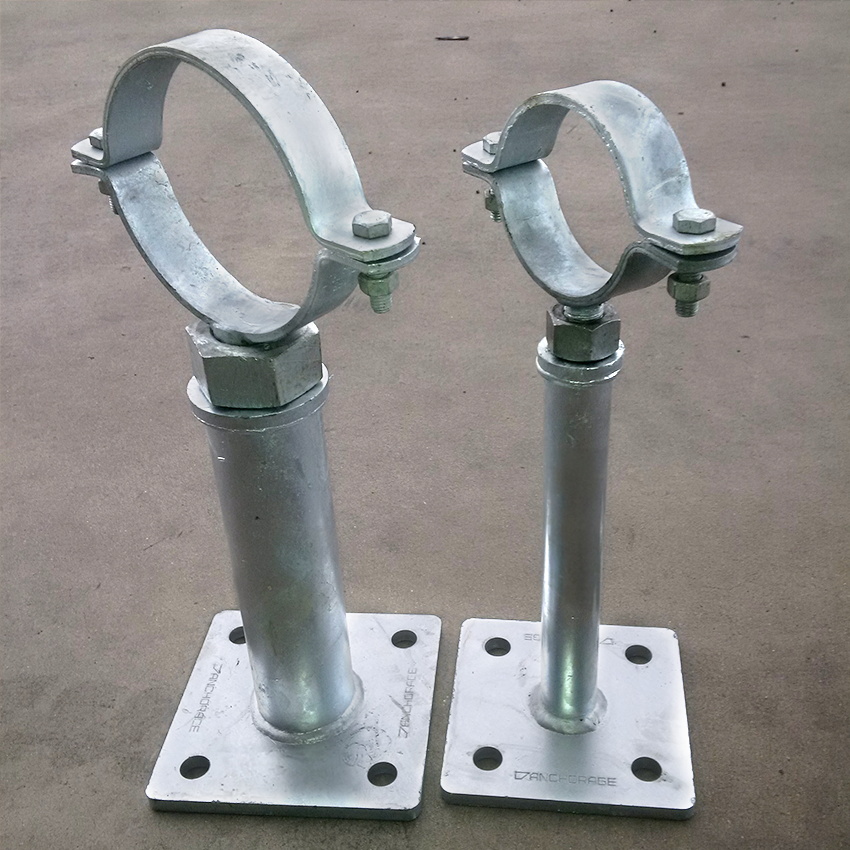

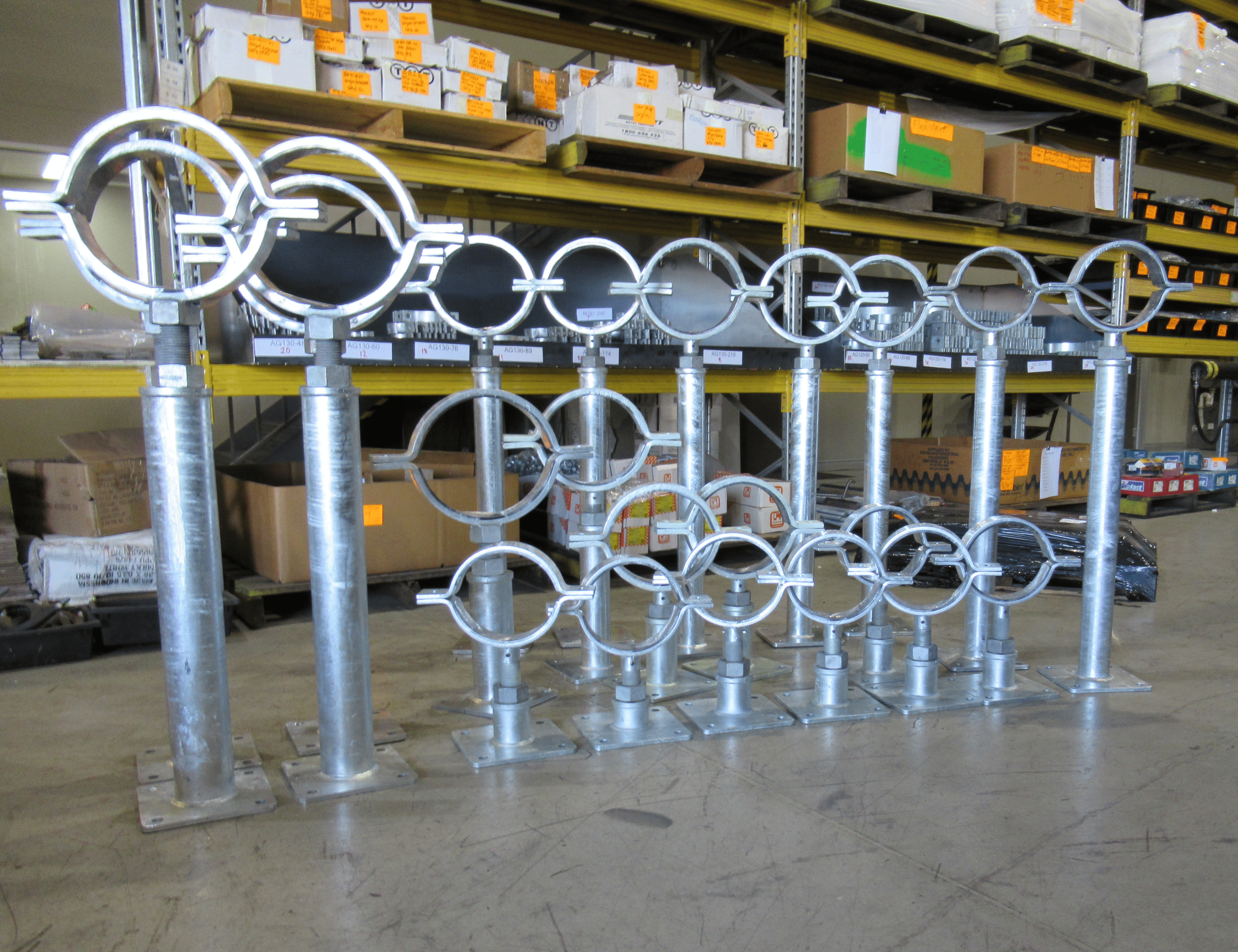

HEIGHT ADJUSTABLE SUPPORT – CLAMP MOUNT AG631

Galvanised carbon steel, available in stainless steel
No on-site welding required
Weight and load rating based on 1000mm BOP
Galvanised - up to 200°C
Not recommended under 400mm BOP
Designed for vertical support only
Not suitable for axial or uplift restraint
60mm up/down adjustment from nominated BOP dimension
Clamp as per AG110
Custom versions and sizes available

QUICK QUOTE View Design Files Custom Enquiry Product FAQ

Product Data

Product is available with varying finishes and technical specifications where shown. Use the tabs, technical information and part numbers below to request an online quote (or reference the part number in your specification).

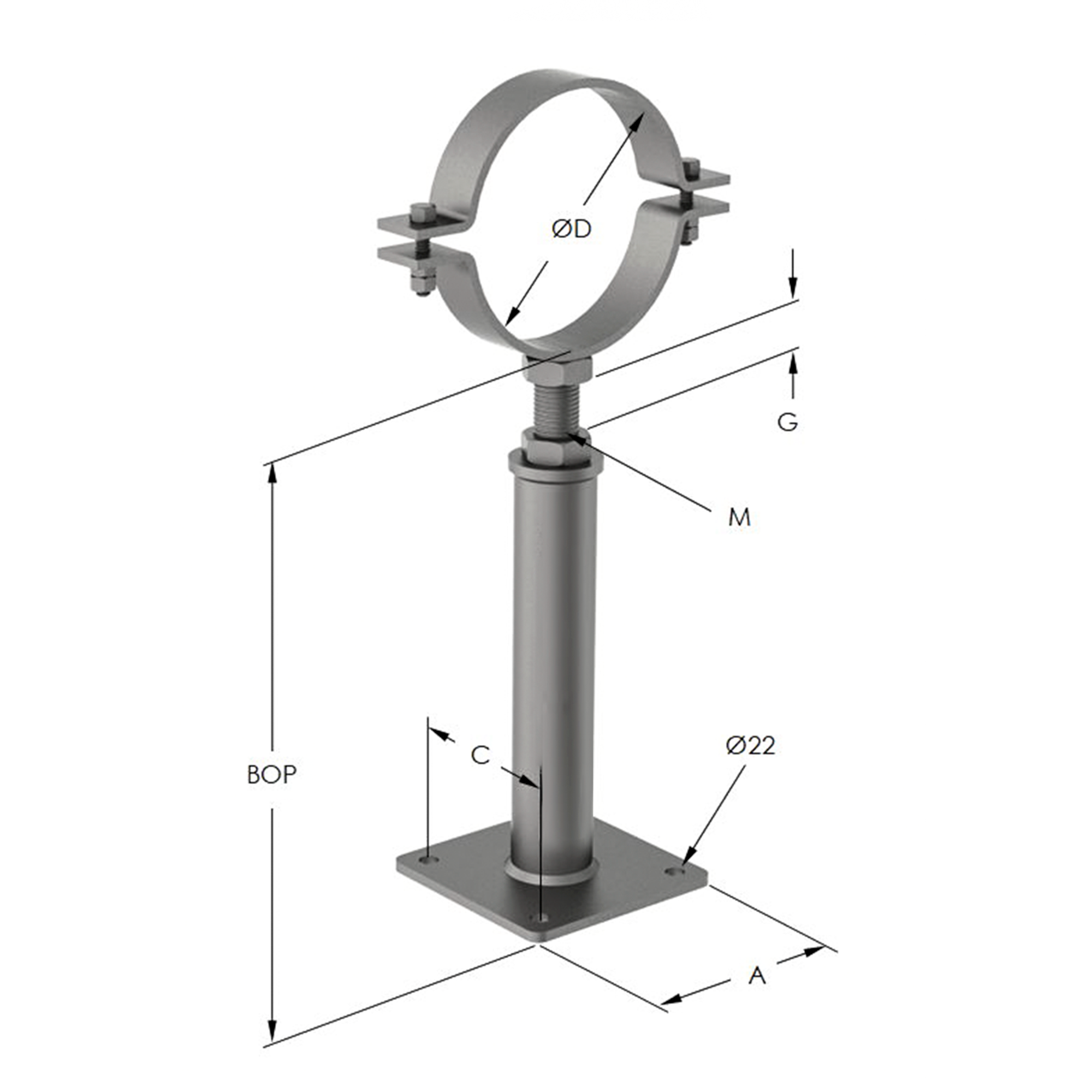

Part No.	Pipe DN	ØD (mm)	A (mm)	C (mm)	G (mm)	M (mm)	SWL (Kg)	Item Weight (kg)	Add to quote

AG631-021	15	180	115	60	24	2,000	8.40
AG631-027	20	180	115	60	24	2,000	8.50
AG631-034	25	180	115	60	24	2,000	8.50
AG631-042	32	180	115	60	24	2,000	8.60
AG631-048	40	180	115	60	24	2,000	8.70
AG631-060	50	180	115	60	24	2,000	8.70
AG631-076	65	180	115	60	24	2,000	9.50
AG631-089	80	180	115	60	24	2,000	9.60
AG631-102	90	180	115	60	24	2,000	9.70
AG631-114	100	180	115	60	24	2,000	9.80
AG631-141	125	180	115	60	24	2,000	10.80
AG631-168	150	250	190	60	48	5,000	21.00
AG631-194	175	250	190	60	48	5,000	24.80
AG631-219	200	250	190	60	48	5,000	25.10
AG631-245	225	250	190	60	48	5,000	27.30
AG631-273	250	250	190	60	48	5,000	27.80
AG631-324	300	300	200	60	56	6,500	37.10
AG631-356	350	300	200	60	56	6,500	41.60
AG631-406	400	300	200	60	56	6,500	47.00
AG631-457	450	300	200	60	56	6,500	62.00
AG631-508	500	300	200	60	56	6,500	74.40
AG631-559	550	300	200	60	56	6,500	77.70
AG631-610	600	300	200	60	56	6,500	99.70

Design Files (Free Download)

Enjoy free access to our high quality design files to streamline and ensure accuracy with your design and planning process.

Revit 2021 873 KB Download
Revit 2022 882 KB Download
Revit 2023 893 KB Download
Revit 2024 916 KB Download
Revit 2025 928 KB Download

Autocad 1 MB Download
Step 1 MB Download
Product Images 577 KB Download
User Guide 3 MB Download

FAQ

Can’t find the answer you’re looking for?

Please contact us and one of our friendly team members will get back to you as soon as possible.

See all FAQS Contact Us

Galvanised vs Stainless Pipe Supports – Which Should You Choose

Galvanised pipe supports provide cost-effective corrosion protection for general outdoor and water infrastructure environments, while stainless steel supports offer superior resistance in highly corrosive or chemically aggressive conditions. Selection depends on environmental exposure, maintenance expectations, and project lifecycle requirements.
What is a Height Adjustable Pipe Support?

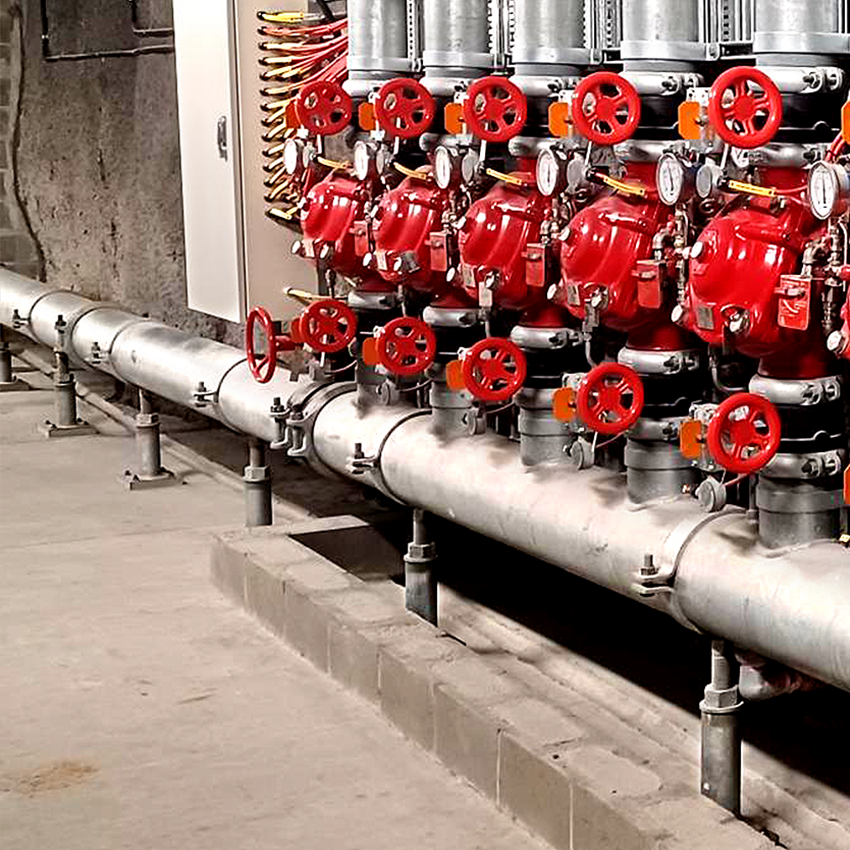

A height adjustable pipe support is a structural support system designed to allow precise vertical adjustment of pipework during installation. It is commonly used in water treatment plants, municipal infrastructure, and industrial facilities where accurate pipe alignment and elevation control are required.
When Should I Use a Clamp-On Pipe Shoe?

A clamp-on pipe shoe should be used when welding to the pipe is not permitted or when installation speed and flexibility are priorities. Clamp-on designs are commonly specified in water treatment, municipal, and industrial infrastructure projects where minimising hot works reduces risk and downtime.
What Pipe Supports Require No Welding?

Pipe supports that require no welding include clamp-on pipe shoes, U-bolt assemblies, adjustable pipe stands, and mechanically fixed saddle clamps. These systems are commonly specified in water treatment, municipal, and industrial infrastructure projects where hot works are restricted or coating protection must be maintained.
How Do You Prevent Galvanic Corrosion in Pipe Supports?

Galvanic corrosion in pipe supports is prevented by electrically isolating dissimilar metals, selecting compatible materials, and incorporating isolation pads or coatings. In water and wastewater infrastructure, proper material selection and moisture management are essential to avoid accelerated corrosion at support points.
