Multilock™ Variable Spring Supports

MULTILOCK™ Variable Load
Spring Supports

Multilock™ variable load spring supports are used for supporting pipe work, vessels, columns and pipe connections to large tanks, which are subject to thermal movement and/or subsidence.

All units can be easily locked in its current position by winding the locking nuts (4 off) up tight against the pressure plate resulting in a rigid support.

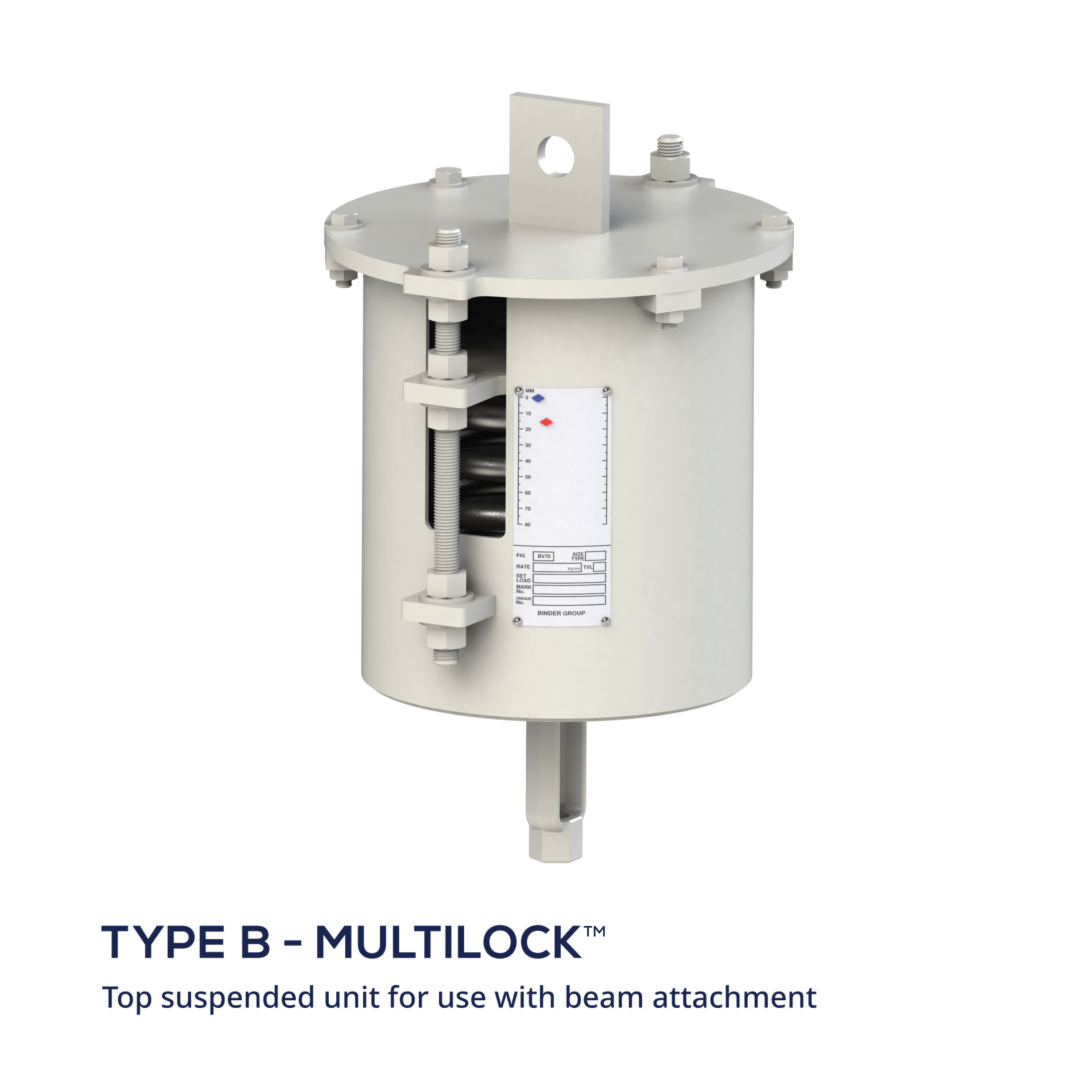

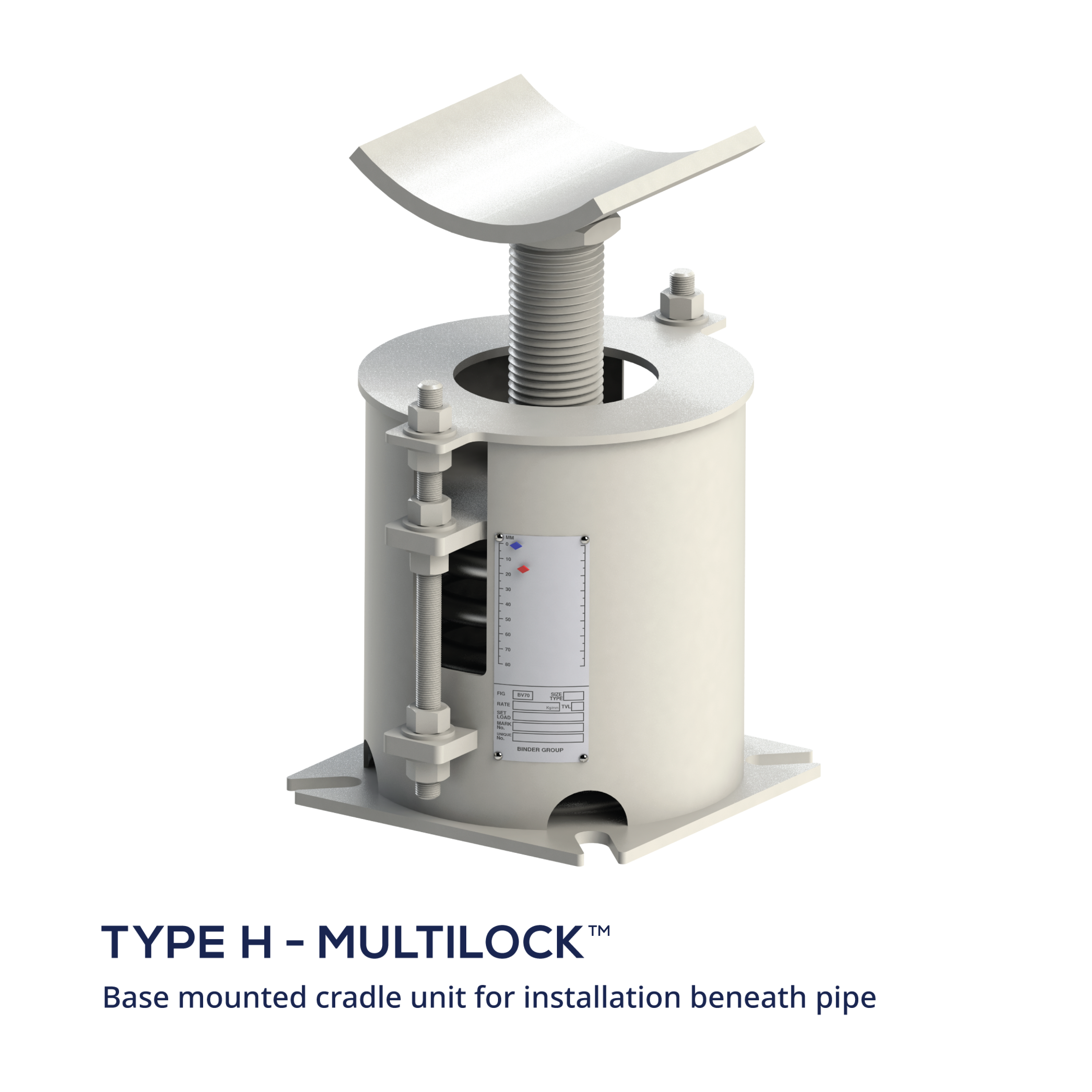

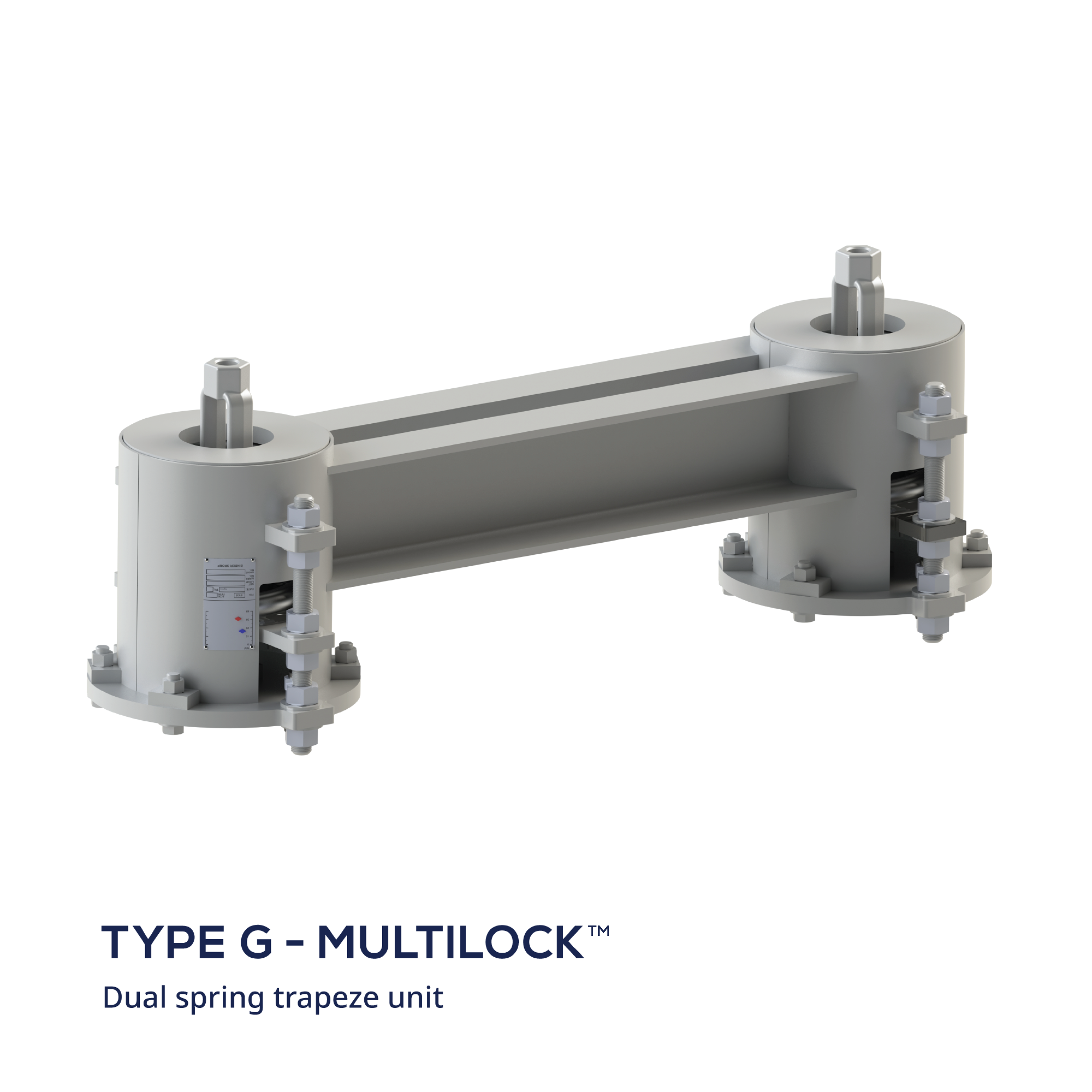

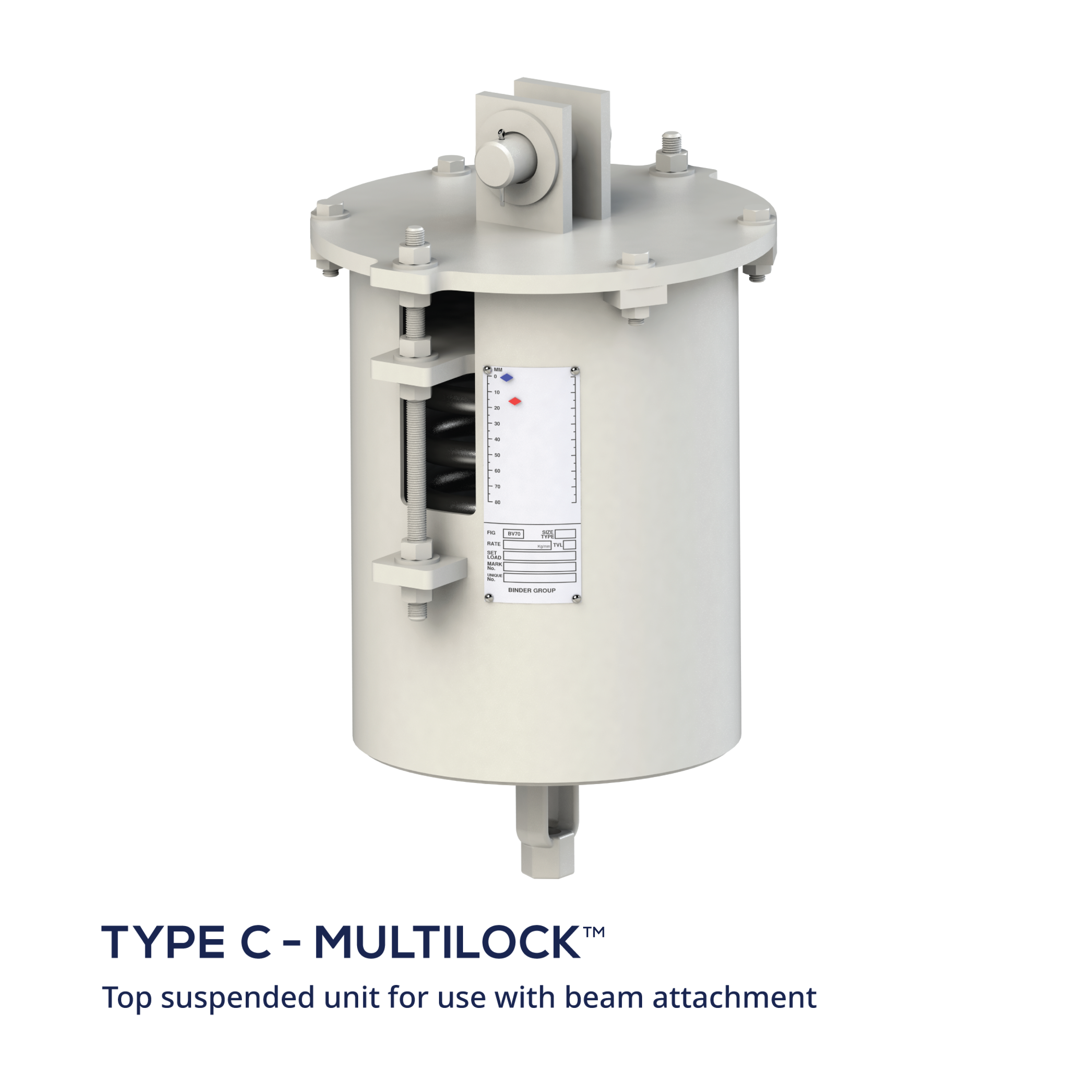

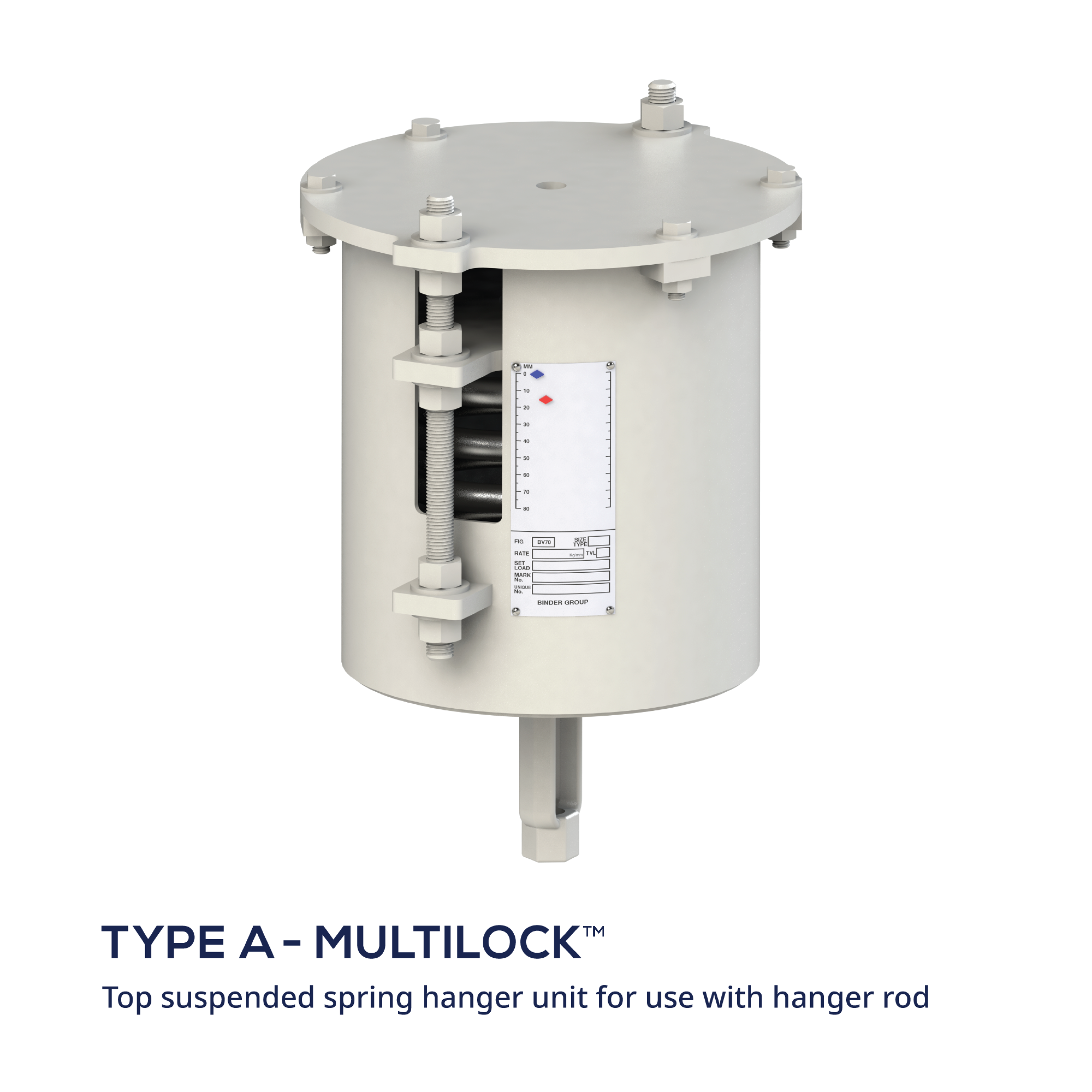

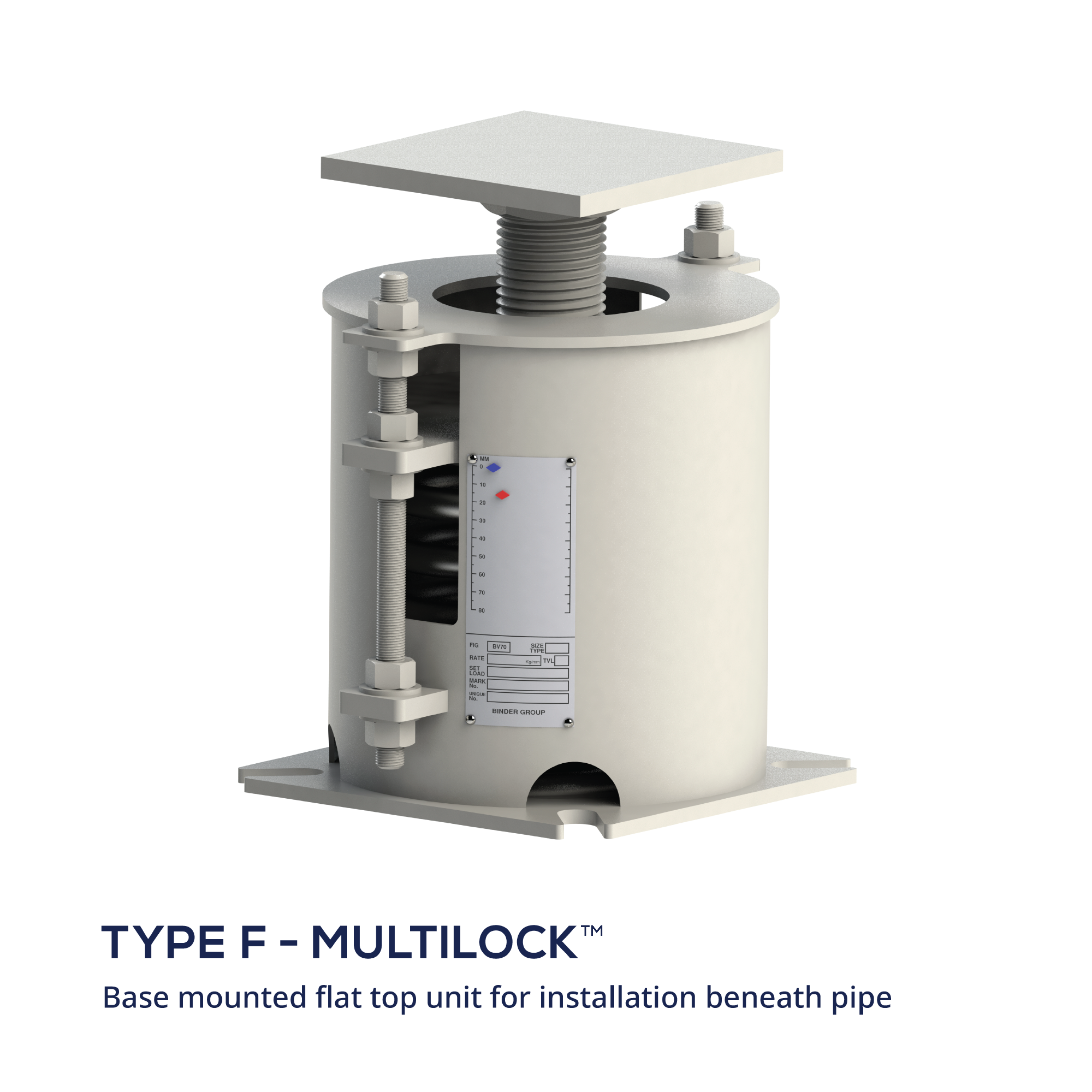

All units are easily adjusted, Types A, B, C and G being supplied with a Turnbuckle built into the unit. Type F,H & K units use a threaded load tube with a guided load column.
Carbon Steel construction with Stainless Steel Load and Travel scale plate.
Ideally suited for highly corrosive environments such as Offshore and Refining installations. Standard design allows surface protection system on all internal and external surfaces limiting potential corrosion.
Scale plate fitted with a hot/operating (red) and cold/preset (blue) indicators.
